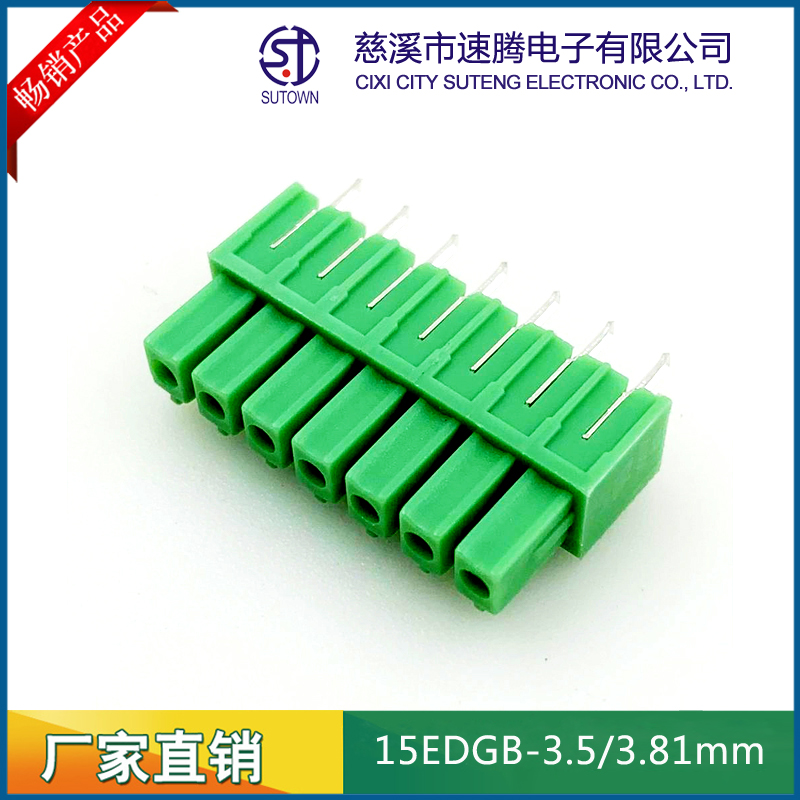

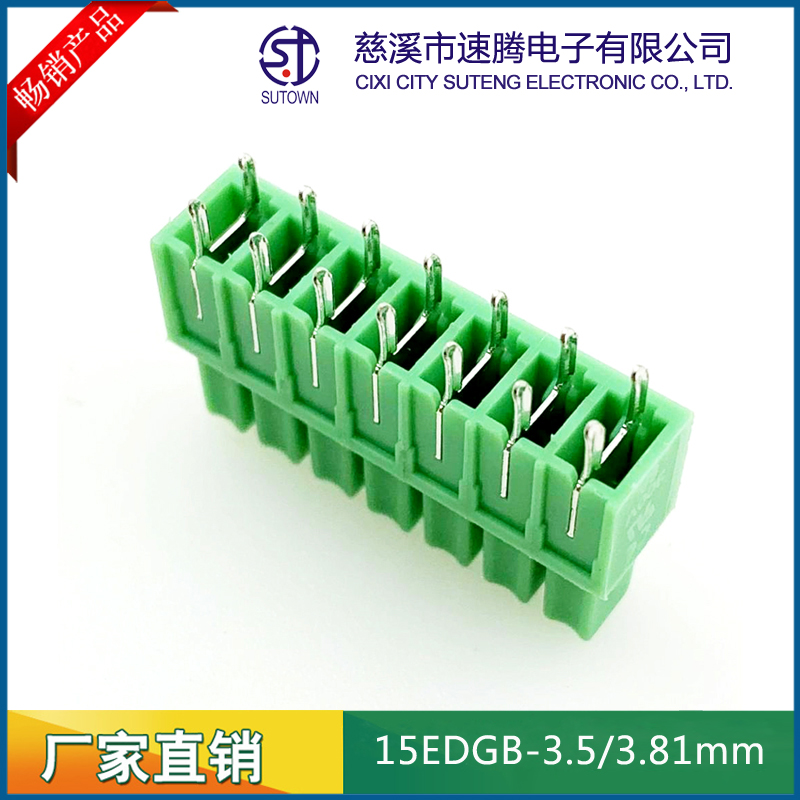

Material and Plating
Spacing:3.5/3.81mm
Plastic parts;PA66,UL94V-0
Cage:Brass,Tin plating
Screw:M2.0,Steel,Zn Plating
Terminal：Phosphor bronze，Nickel plating
Electrical performance
Rated voltage：300V
Rated current：8A
Mechanical properties
Ambient temperature:-40℃~+105℃
MAX Soldering:+250℃,5s
Withstanding Voltage:AC2000V/1Min
Contact resistance:20mΩ
Insulation resistance:5000MΩ/1000V
